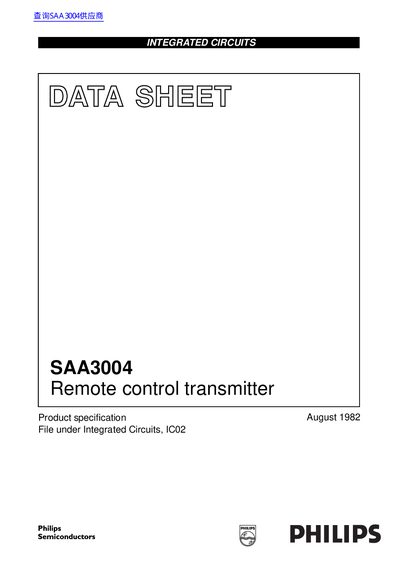

This document is about SAA3004's datasheet, which introduces the functions and features of the device
The Philips SAA3004 is an integrated circuit designed for infrared remote control systems. It features a total of 448 commands divided into 7 sub-system groups, allowing for flexible configuration via buttons, switches, or hard wiring. The device supports both flashed and modulated transmission modes to drive output stages with high current capability.
| Total Commands | 448 commands |
|---|---|
| Sub-system Groups | 7 sub-system groups |
| Commands per Group | 64 commands each |
| Supply Voltage Range | 4 to 11 V |
| Operational Current | < 2 mA at 6 V |
| Oscillator Frequency | 400 kHz to 500 kHz |
| Encapsulation | 20-lead plastic DIL or SO-20 |
The SAA3004 supports both flashed and modulated transmission modes.
Addresses are selected by pressing a button, using a slider switch, or hard wiring.
The operational current is less than 2 mA at a 6 V supply.
