SAA4970T is an economical video processing IC (ECOBENDIC) with features such as digital horizontal PLL, digital CTI, digital luminance peaking, digital phase compensation filter, and D/A conversion.

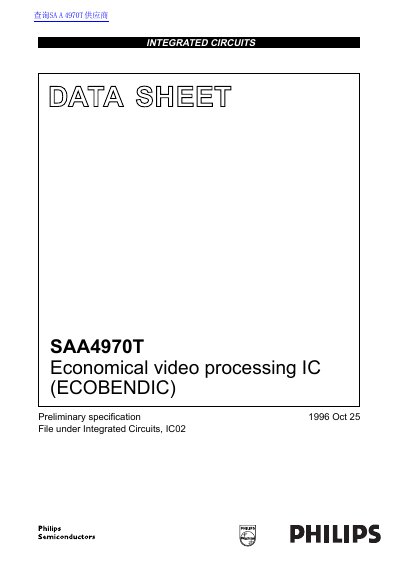

The document is a preliminary data sheet for the Philips SAA4970T integrated circuit, marketed as the ECOBENDIC (Economical Back End IC). Designed for double scan conversion, this chip includes features such as digital luminance peaking, phase compensation filtering, and D/A conversion. It is intended to cooperate with specific microcontrollers and memory chips.
| Digital supply voltage (Vop) | 4.5 - 5.5 V |
|---|---|
| Analog supply voltage (Veco) | 4.75 - 5.25 V |
| Operating ambient temperature | 0 to 70 °C |
The device operates within an ambient temperature range of 0 to 70 °C.
The maximum digital supply voltage specified for this IC is 5.5 V.
The external crystal output provides a signal at 12 MHz.
