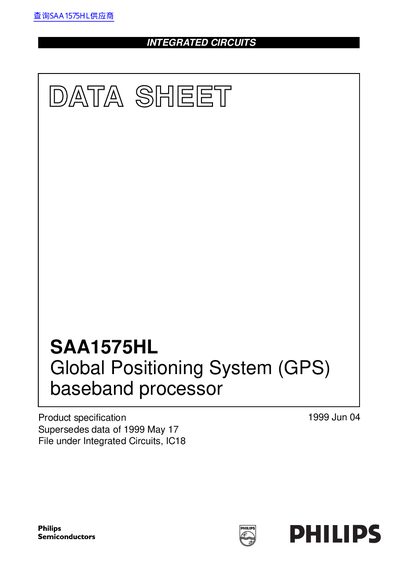

The SAA1575HL is a Global Positioning System (GPS) baseband processor with various functions and features.
The SAA1575HL is an integrated circuit that implements a complete baseband function for GPS receivers. It combines a 16-bit Philips 80C51XA microcontroller, eight GPS channel correlators, and related peripherals in a single IC to allow users to implement a complete GPS receiver with minimal external components.
The device operates using all-digital 0.5 micron CMOS technology with a single power supply supporting full 3 V operation. It includes features such as up to 30 MHz system clock speed, 2 kbytes of internal data memory, an external bus for up to 512 kbytes of program and data memory, and two fully duplex UARTs for communication.
| Technology | All digital, 0.5 micron CMOS technology |
|---|---|
| System Clock Frequency | Upto 30 MHz |
| Internal Data Memory | 2 kbytes words |
| External Program/Data Memory Capacity | 512 kbytes words each |
| GPS Channel Correlators | 8 |
| UARTs | 2 fully duplex |
| Real-time Clock Frequency | 32.768 kHz |
| Package Type | 100-pin LQFP |
| Supply Current (Typical) | 50 mA |
The SAA1575HL is an integrated circuit that implements a complete baseband function for Global Positioning System (GPS) receivers.
The chip includes eight GPS channel correlators.
