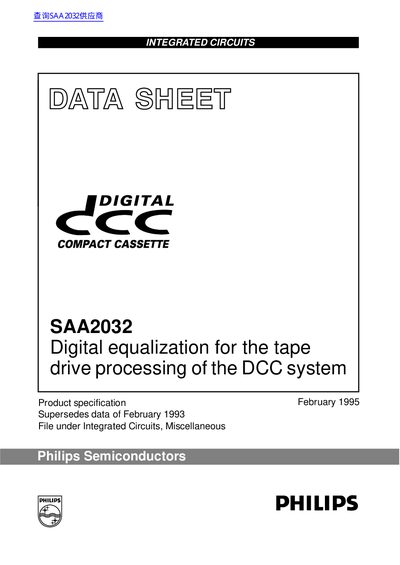

SAA2032 is a digital equalizer for the tape drive processing of the Digital Compact Cassette (DCC) system. It can perform digital equalizing function and be used in conjunction with SAA2022, read amplifier TDA1317 or TDA1318.
The Philips SAA2032 is an integrated circuit designed for the Digital Compact Cassette (DCC) system. It performs analog-to-digital conversion, demultiplexing, equalization, and zero crossing of time-multiplexed analog read amplifier signals. The device is intended for use in conjunction with the SAA2022 and TDA1317 or TDA1318 chips.
| Supply Voltage (ADC) | +5 V |
|---|---|
| Operating Voltage Capability | 4 V nominal |
| Data Channel Bit-rate | 96 kbits/s |
| Auxiliary Channel Bit-rate | 12 kbits/s |
It is intended for use in conjunction with the SAA2022, read Analog eye output amplifier TDA1317 or TDA1318.
The typical frequency for the clock input (pin 43) is 24.576 MHz.
