The SAA2013 is an audio processor chip produced by Philips Semiconductors. It is used in the DCC system. The chip has a wide voltage range, low power consumption, and low electromagnetic interference.

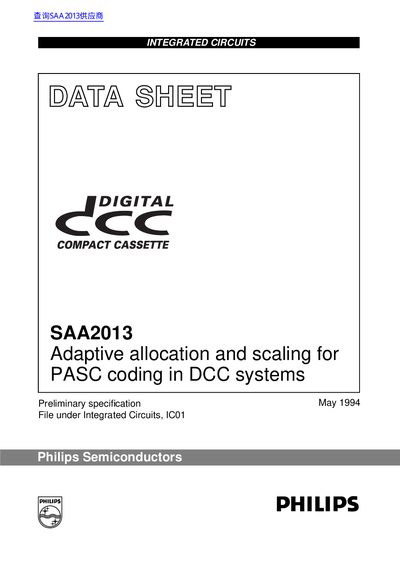

The Philips SAA2013 is an integrated circuit designed to perform adaptive allocation and scaling functions within Precision Adaptive Sub-band Coding (PASC) systems used in DCC (Digital Compact Cassette) applications. It operates as part of a PASC processor alongside the SAA2003 stereo filter codec to ensure optimum sound quality during recording.
| Operating voltage range | 2.7 to 5.5 V |
|---|---|
| Power consumption | 13 mW at 3.0 V |
| Low power decode mode consumption | 1 mW at 5.0 V |
| Package type | QFP (SOT307) |
| Bit rate | 384 kbits/s |
| Sub-bands | 32 |
No, it is not required in playback-only applications and is only used during recording.
The device is reset if the RESET pin is held HIGH for at least 5 periods of the CLK24 clock.
