Agilent 1260 Infinity Isocratic Pump Features and Specifications

Agilent 1260 Infinity Isocratic Pump HPLC workhorse for demanding QA/QC and routine applications

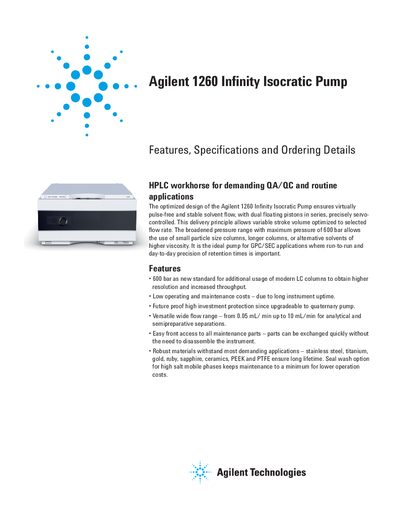

Agilent 1260 Infinity Isocratic Pump Features and Specifications - cover page
Brand
Agilent
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
3
File format
PDF
File size
77 KB
Published
04 July, 2012
Updated
01 October, 2023
MD5 checksum
A5DC6824A9773497C3E359C276364532

About this manual

The Agilent 1260 Infinity Isocratic Pump is designed as a robust HPLC workhorse for demanding and routine applications. Its optimized design utilizes dual floating pistons in series with precise servo-control to ensure virtually pulse-free and stable solvent flow. The pump supports a broadened pressure range with a maximum of 600 bar, making it suitable for small particle size columns and GPC/SEC applications where high precision is required.

What's inside

  • Features
  • Specifications
  • Ordering Details
  • Hydraulic System
  • Control
  • Communications
  • Safety and Maintenance
  • GLP Features

Specifications

Maximum Pressure600 bar
Flow Range0.2 - 10.0 mL/min
Flow Precision< 0.07 % RSD
Flow Accuracy+ 1% or 10 L/min
Pressure Pulsation< 2 % amplitude
Product NumberG1310B

Frequently asked questions

What is the maximum pressure of the pump?

The maximum pressure is 600 bar.

What is the settable flow range?

The settable flow range is from 0.001 to 5 mL/min.

Is the pump upgradeable?

Yes, it is future-proof and upgradeable to a quaternary pump.
