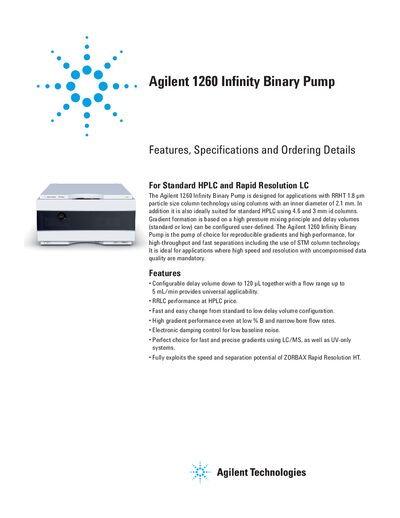

The Agilent 1260 Infinity Binary Pump is a pump for fast resolution applications using 2.1mm inner diameter RRHT 1.8µm particle columns. The pump can be configured with standard or low delay volumes and is suitable for HPLC and RRLC applications.
The Agilent 1260 Infinity Binary Pump is designed for applications with Rapid Resolution HT (RRHT) 1.8 µm particle size column technology, as well as standard HPLC using 4.6 and 3 mm ID columns. It is ideal for reproducible gradients and high performance, supporting high-throughput and fast separations including the use of STM column technology. The pump features a high-pressure mixing principle and configurable delay volumes.
| Settable flow range | 0.001 - 5 mL/min |
|---|---|
| Flow precision | 0.07% RSD or < 0.02 min SD |
| Pressure operating range | Up to 60 MPa (600 bar) |
| Delay volume (Standard) | 600 - 800 pL |
| Delay volume (Low) | 120 pL |
| Composition precision | <0.15 % RSD |
The recommended pH range is 1.0 - 12.5.
It is compatible with Agilent control software such as ChemStation, EZChrom, OL, and MassHunter.
