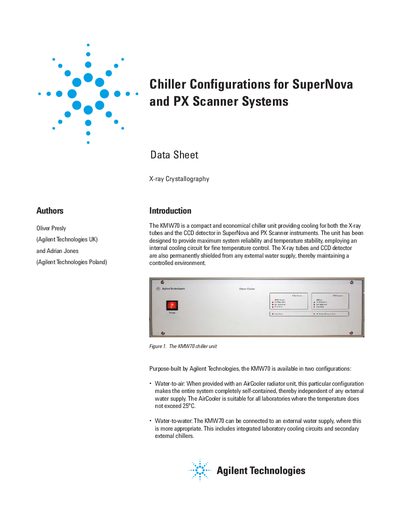

The KMW70 is a compact and economical chiller unit providing cooling for both the X-ray tubes and the CCD detector in SuperNova and PX Scanner instruments. The unit has been designed to provide maximum system reliability and temperature stability, employing an internal cooling circuit for fi ne temperature control. The X-ray tubes and CCD detector are also permanently shielded from any external water supply, thereby maintaining a controlled environment.
The KMW/70 is a compact and economical chiller unit designed for SuperNova and PX Scanner instruments. It provides cooling for both X-ray tubes and CCD detectors, ensuring maximum system reliability and temperature stability. The unit features an internal cooling circuit and shields the components from external water supplies.
The chiller is available in two configurations: water-to-air, which is self-contained and suitable for laboratories with temperatures up to 26°C, and water-to-water, which connects to an external laboratory cooling circuit or secondary chiller. Both configurations are designed for simple maintenance and quiet operation.
| Maximum heat dissipation | 1250W (4265 BTU/hr) |
|---|
The AirCooler is suitable for all laboratories where the temperature does not exceed 26°C.
The unit is available in two configurations: water-to-air, which is self-contained and independent of an external water supply, and water-to-water, which connects to an external water supply.
The chiller requires a coolant specification of 90% distilled water and 10% ethylene glycol.
