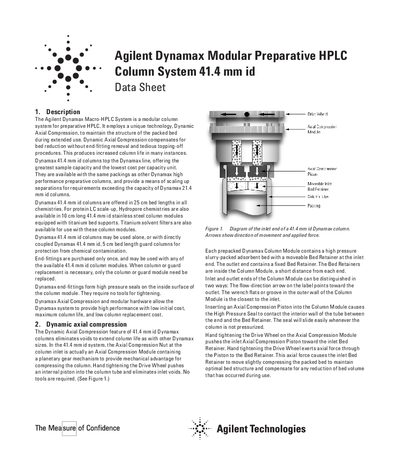

Agilent Dynamax Modular Preparative HPLC Column System 41.4 mm id Data Sheet is a high performance liquid chromatography column for separation and purification of samples.
The Agilent Dynamax Macro-HPLC System is a modular column system designed for preparative HPLC applications. It utilizes unique Dynamic Axial Compression technology to maintain the structure of the packed bed during extended use, compensating for bed reduction without the need for end-fitting removal or tedious topping-off procedures. This technology increases column life and offers the greatest sample capacity and lowest cost per capacity unit within the Dynamax line.
The system features a planetary gear mechanism in the Axial Compression Module that allows for hand-tightening to compress the column bed. The document provides detailed assembly instructions for single columns without guards, including the use of specific End-Fittings Kits and Axial Compression Pistons. It also highlights the passive sealing mechanism and the importance of avoiding tools for tightening to prevent damage.
| Column ID | 41.4 mm |
|---|---|
| Bed Length | 25 cm |
| Thread Size | 4-28 |
| Stainless Steel Tube Length | 20 cm |
Dynamax 41.4 mm id columns are offered in 25 cm bed lengths.
Tubing with a 1/16" outer diameter attaches to the Axial Compression Pistons.
The kit includes a 20 cm-length x 1/16" od x 0.030" id stainless steel tube.
