This document introduces the meters of models 61-310, 61-312, 61-340, and 61-342, as well as the steps and results of testing these meters. These meters convert electrical or physical measurements into small electrical voltages or currents to be interpreted by an analog-to-digital converter and displayed on an output device. The tests include DC voltage testing, AC voltage testing, and resistance testing. If the meter passes all the tests, it indicates that about 80% of the base functions have been tested. Additionally, temperature testing and fuse checking are mentioned.

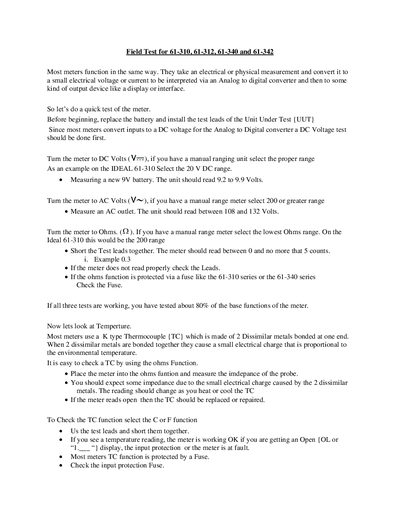

This document provides field testing procedures for the IDEAL 61-310, 61-312, 61-340, and 61-342 series meters. It outlines a quick test to verify about 80% of base functions by checking DC voltage, AC voltage, and resistance measurements.
The unit should read between 9.2 and 9.9 Volts.
The unit should read between 108 and 132 Volts.
If the meter does not read properly, check the leads or fuse.
