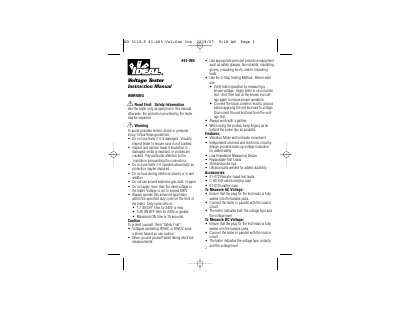

This document is an instruction manual for a multimeter, which includes the use of the product, precautions, features and characteristics, etc.
The IDEAL 61-065 is a solenoid-type voltage tester designed to indicate AC and DC voltages up to 600V. It features independent electronic circuitry and an ultrasonically welded design for durability, along with replaceable test leads that include current-limiting resistors rated at 140 Ω.
The document details the proper use of the device, including the mandatory 3-Step Testing Method to verify operation before and after each measurement. It also covers specific applications such as locating blown fuses in power-on circuits and distinguishing between 25-cycle and 60-cycle frequencies based on hum and vibration.
| Maximum Rated Voltage | 600V |
|---|---|
| AC Ranges | 120V, 240V, 480V, 600V AC |
| DC Ranges | 120V, 240V, 600V DC |
| Operating Frequency | 25-60 Hz |
| Input Impedance | Low |
| Overload Protection | 1000VDC/750VAC rms |
The rated voltage must not exceed 600V.
You must measure a known voltage, then test on the circuit under test, and finally re-test on the known live voltage.
The maximum ON time is 15 seconds.
