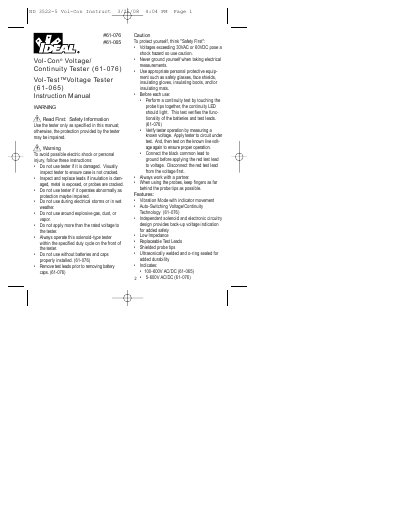

This document introduces the use of Vol-Con® Voltage/ Continuity Tester (61-076) Vol-Test™ Voltage Tester (61-065) products, including safety information, warnings, cautions, etc.
The IDEAL 61-076 Vol-Con Voltage/Continuity Tester is a solenoid-type instrument designed to indicate AC/DC voltage levels from 5 to 600V and check for continuity. It features auto-switching technology, independent solenoid and electronic circuitry for added safety, and replaceable test leads with shielded tips.
| Continuity Threshold | <500k Ω |
|---|---|
| Response Time | 100ms |
| Operating Frequency | 25-60 Hz |
| Overload Protection | 1000VDC/750VAC rms |
| Battery Type | (4) 1.5V (IEC LR44) |
| Operating Temperature | 32°F to 122°F (0 to 50°C) |
| Weight | 8.0 oz (227g) |
Perform a continuity test by touching the probe tips together; the continuity LED should light.
Remove test leads, pry open the battery caps from the bottom of the case with a screwdriver, replace batteries, and snap caps back in place.
