The Volt Sensor is a portable voltage detection device that can detect voltages ranging from 40-600VAC. It provides audible and visual indications to easily recognize the presence of voltage. Safety warnings should be followed, such as not operating without the clip and not using it for detecting DC power.

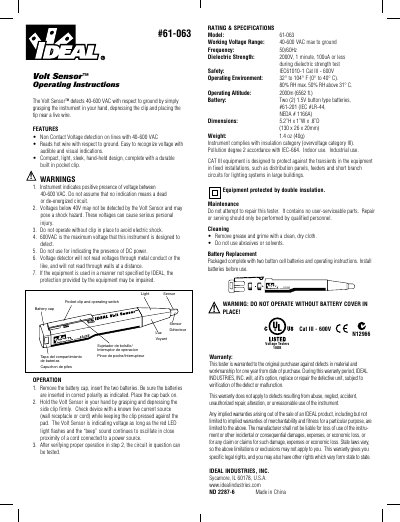

The document provides operating instructions for the IDEAL Volt Sensor™ (Model 61-063), a handheld device designed to detect AC voltages between 40 and 600 VAC with respect to ground. It features non-contact detection capabilities indicated by a flashing red LED and an audible beep.
| Working Voltage Range | 40-600 VAC max to ground |
|---|---|
| Frequency | 50/60Hz |
| Safety Rating | IEC61010-1 Cat III - 600V |
| Operating Environment Temperature | 32° to 104° F (0° to 40° C) |
| Battery Type | Two (2) 1.5V button type batteries |
The instrument is designed to detect a maximum of 600 VAC.
No, it should not be used for indicating the presence of DC power.
Voltage presence is indicated by a flashing red LED light and an oscillating beep sound.
