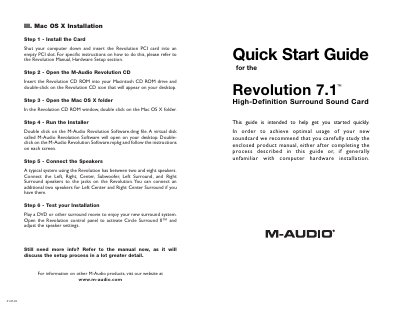

M-Audio Revolution 7.1 Quick Start Guide

This document is the Quick Start Guide for the Revolution 7.1 High-Definition Surround Sound Card, intended to help users get started quickly. It is recommended to carefully study the enclosed product manual for optimal usage of the sound card.

Brand: M-Audio
Category: Other Computer Accessories
Document type: Quick Start Guide
Language: English
Pages: 4
File format: PDF
File size: 49 KB
Published: 04 July, 2012
Updated: 29 September, 2023
Model: Revolution 7.1
MD5 checksum: 6506FFC01F8AE12D74CB81AFCB65F59C
PDF: M-Audio Revolution 7.1 Quick Start Guide PDF

About this manual

This document serves as a quick start guide for the M-Audio Revolution 7.1 High-Definition Surround Sound Card. It provides step-by-step instructions for installing the PCI card into a computer running Windows, Mac OS X, or Mac OS 9.2.2.

The guide details how to install drivers and software using the included CD-ROM. It also covers connecting speakers (Left, Right, Center, Subwoofer, Surrounds) and testing the installation by playing surround sound content.

What's inside

Windows Installation
Mac OS X Installation
Mac OS 9.2.2 Installation
Install the Card
Connect the Speakers
Test your Installation

Frequently asked questions

How many speakers can a typical system using the Revolution connect?

A typical system can connect between two and eight speakers.

What software is required for Windows 2000 or Windows Me users before installing the software?

Users must have Direct X 8.1 installed in their system before installing the Revolution software.

Which Mac OS version does M-Audio recommend for optimal audio performance?

M-Audio recommends OS 9.2.2 for optimal audio performance with the Revolution card.
