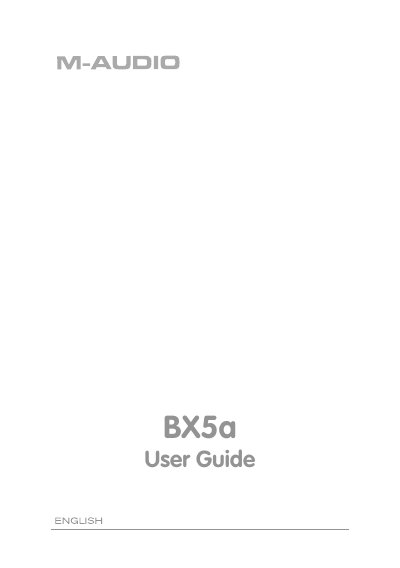

M-Audio BX5a Studio Monitor User Guide

About this manual

The M-Audio Studiophile BX5a is a self-powered, bi-amplified studio monitor featuring a 5-inch Kevlar woofer and a 1-inch silk dome tweeter. Designed for desktop music production, it delivers pure sound with magnetic shielding to prevent interference.

Installation involves connecting balanced XLR or TRS cables from preamps or computers to the rear panel inputs. Users must set the voltage switch on the back before powering on and should turn the volume down to minimum during connection.

What's inside

• Introduction
• What's in the Box
• Features (Woofer, Tweeter)
• Enclosure Design
• Network and Power Amplifiers
• Rear Panel Features
• Front Panel Features
• Installation Precautions
• Connections

Specifications

Frequently asked questions

What voltage settings are available for the BX5a?

The unit provides two selections: 115V AC and 230V AC.

Can the BX5a accept both XLR and TRS inputs simultaneously?

Yes, the TRS input is summed through a balanced amplifier with the XLR input.
