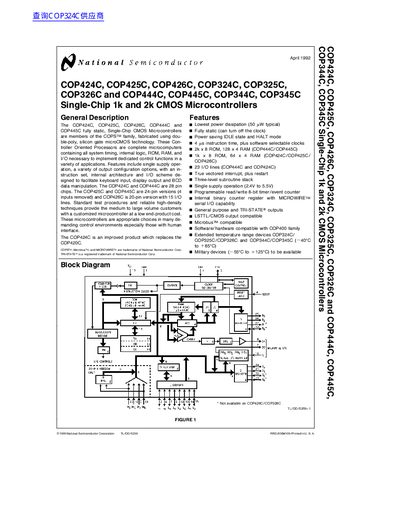

COP424C, COP425C, COP426C, COP324C, COP325C, COP326C and COP444C, COP445C, COP344C, COP345C Single-Chip 1k and 2k CMOS Microcontrollers
This document provides detailed specifications for the COP4xx and COP3xx family of fully static, Single-Chip CMOS Microcontrollers. These Controller Oriented Processors are complete microcomputers containing system timing, internal logic, ROM, RAM, and I/O necessary to implement dedicated control functions in various applications.
| Operating Voltage (COP4xx) | 2.4V to 5.5V |
|---|---|
| Operating Voltage (COP3xx) | 3.0V to 5.5V |
| Supply Current (Idle, COP4xx) | 120 mA @ 2.4V |
| Instruction Cycle Time (Max) | 4 ms |
| ROM Size (COP4xx) | 2k x 8 bits |
| RAM Size (COP4xx) | 64 x 4 bits |
| I/O Lines (COP4xx) | 23 lines |
The operating voltage range is 2.4V to 5.5V.
The maximum supply current is 3000 mA.
The maximum supply voltage is 6V.
