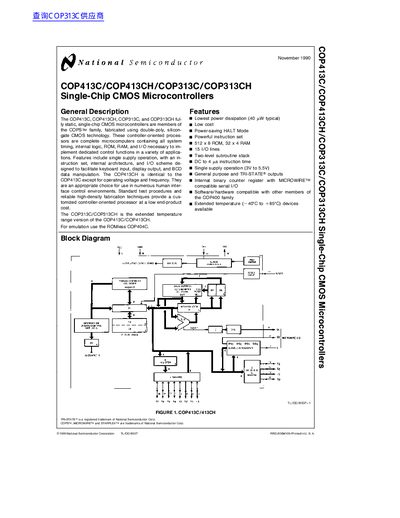

COP413C, COP413CH, COP313C, and COP313CH are fully static, single-chip CMOS microcontrollers that belong to the COPS family. They are fabricated using double-poly, silicon-gate CMOS technology and provide complete microcomputer functionality, including system timing, internal logic, ROM, RAM, and I/O. Features include single supply operation, instruction set designed for keyboard input, display output, and BCD data manipulation. These products offer a low-cost solution for various human interface control environments.
The document describes the COP413C, COP413CH, COP313C, and COP313CH as fully static, single-chip CMOS microcontrollers designed for dedicated control functions. These devices are members of the COPS family and contain all necessary system timing, internal logic, ROM, RAM, and I/O to implement keyboard input, display output, and BCD data manipulation.
| ROM Size | 512 x 8 bits |
|---|---|
| RAM Size | 32 x 4 bits |
| I/O Lines | 15 |
| Instruction Time (DC Mode) | 4 ms |
| Operating Frequency (DC Mode) | 2000 kHz |
| Power Dissipation | 40 mW typical |
The operating temperature range is -40°C to +85°C.
Yes, they are software/hardware compatible with other members of the COP400 family.
The supply current is 30 mA for COP413C and 50 mA for COP313C.
