This document describes the BF996S model of Vishay Telefunken N-Channel dual gate MOS field-effect tetrode, which is mainly used for input and mixer stages in UHF tuners. The product features integrated gate protection diodes, low noise figure, low feedback capacitance, high cross modulation performance, low input capacitance, and high AGC-range.

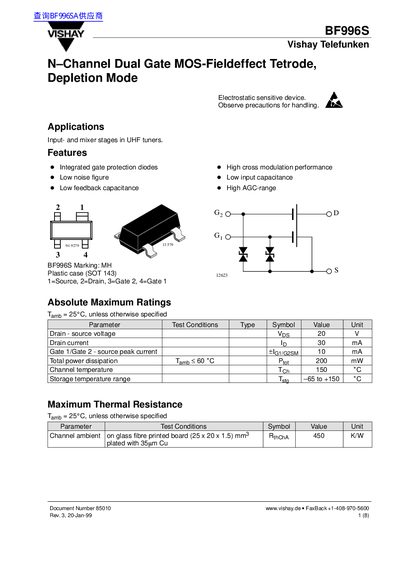

This document is a technical datasheet for the Vishay BF996S, an N-channel dual gate MOS-field effect tetrode in depletion mode. The device features integrated gate protection diodes, low noise figure, and high cross-modulation performance, making it suitable for input- and mixer stages in UHF tuners.
| Drain - source voltage | 20 V |
|---|---|
| Drain current | 30 mA |
| Total power dissipation | 200 mW |
| Channel temperature | 150 °C |
| Storage temperature range | -65 to +150 °C |
| Forward transadmittance (Typ) | 18.5 mS |
The device is intended for use in input- and mixer stages in UHF tuners.
Key features include integrated gate protection diodes, low noise figure, low feedback capacitance, high cross modulation performance, and low input capacitance.
