BUD7312 is a high voltage switching NPN transistor produced by Vishay Telefunken. It features a simple switching transistor (SWOT), high-speed technology, planar passivation, 100kHz switching rate, very low switching losses, very low dynamic saturation, very low operating temperature, optimized RBSOA and high reverse voltage.

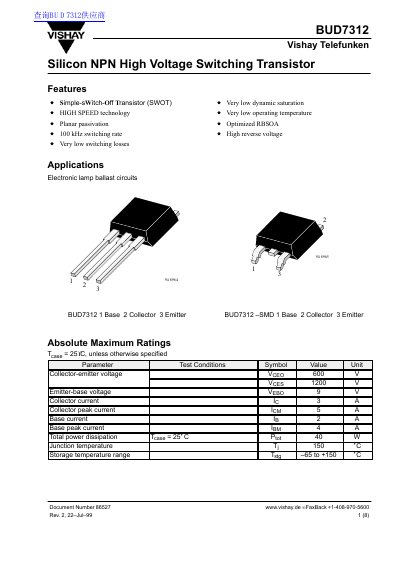

The document describes the Vishay BUD7312, a Silicon NPN High Voltage Switching Transistor utilizing Simple-sWitch-Off (SWOT) and HIGH SPEED technology. Key features include a 100 kHz switching rate, very low switching losses, and optimized RBSOA for high reverse voltage applications.
| Collector-emitter voltage (VCEO) | 600 V |
|---|---|
| Collector current (IC) | 3 A |
| Switching rate | 100 kHz |
The absolute maximum collector-emitter voltage (VCEO) is rated at 600 V.
The total power dissipation (Ptot) must not exceed 40 W at a case temperature of 25°C.
The junction temperature (Tj) must not exceed 150°C.
