BUD630 is a high voltage switching transistor produced by Vishay Telefunken. Its features include simple Switch-Off Transistor (SWOT), HIGH SPEED technology, planar passivation, 100 kHz switching rate, very low switching losses, very low dynamic saturation, very low operating temperature, optimized RBSOA and high reverse voltage.

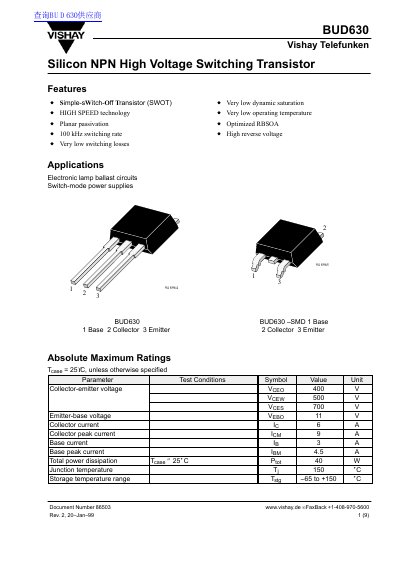

This document is a datasheet for the Vishay BUD630, a Silicon NPN high voltage switching transistor featuring high-speed technology and planar passivation. It is designed for applications such as electronic lamp ballast circuits and switch-mode power supplies, offering a 100 kHz switching rate and very low switching losses.
| Collector-emitter voltage | 400 V |
|---|---|
| Collector current | 6 A |
| Junction temperature | 150 °C |
| Switching rate | 100 kHz |
| Gain bandwidth product | 4 MHz |
The device is intended for use in electronic lamp ballast circuits and switch-mode power supplies.
The collector-emitter voltage rating is 400 V.
