BUD700D is a high voltage switching transistor produced by Vishay Telefunken. It has integrated C-E free-wheel diode, simple switch-off transistor (SWOT), HIGH SPEED technology, planar passivation, 100kHz switching rate, very low switching losses, very low dynamic saturation, very low operating temperature, optimized RBSOA and high reverse voltage. Applications include electronic lamp ballast circuits.

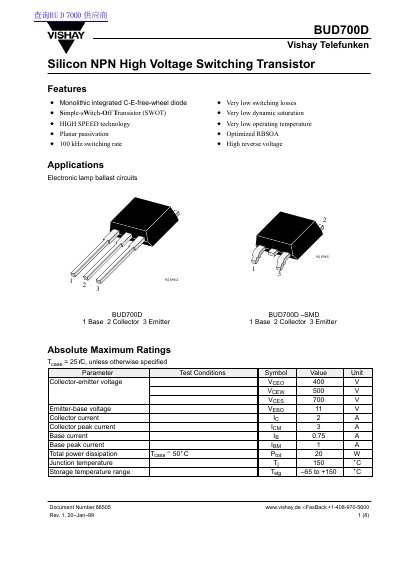

The document describes the Vishay BUD700D, a silicon NPN high voltage switching transistor featuring a monolithic integrated C-E free-wheel diode and Simple Switch-Off Transistor (SWOT) technology. Key characteristics include a 100 kHz switching rate, very low switching losses, and optimized RBSOA, making it ideal for electronic lamp ballast circuits.
| Collector-emitter voltage | 400 V |
|---|---|
| Collector current | 2 A |
| Switching rate | 100 kHz |
| Junction temperature | 150 °C |
The BUD700D is suitable for electronic lamp ballast circuits.
Yes, it features a monolithic integrated C-E free-wheel diode.
The maximum collector current (IC) is 2 A.
