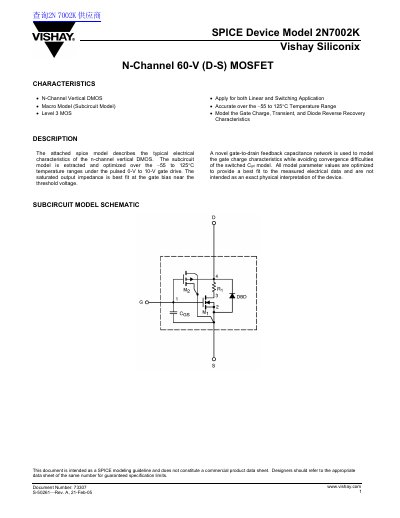

This document describes the characteristics and features of Vishay Siliconix SPICE Device Model 2N7002K N-Channel 60-V (D-S) MOSFET, including N-Channel Vertical DMOS structure, Level 3 MOS model, suitable for both linear and switching applications, wide temperature range, etc. It also introduces the principles of the subcircuit model and the parameter optimization method for this device.
The document presents a SPICE device model (Level 3 MOS) for the 2N7002K, an N-Channel Vertical DMOS. The subcircuit model is optimized for temperature ranges from -55 to 125°C and includes parameters for gate charge, transient response, and diode reverse recovery characteristics.
| Device Type | N-Channel Vertical DMOS |
|---|---|
| Model Level | Level 3 MOS |
| Temperature Range | -55 to 125°C |
This document serves as a SPICE modeling guideline and does not constitute a commercial product data sheet.
Designers should refer to the appropriate data sheet of the same number for guaranteed specification limits.
