This document is about the LP124 series of products, which are four independent high gain internally compensated micropower operational amplifiers produced by National Semiconductor Corporation.

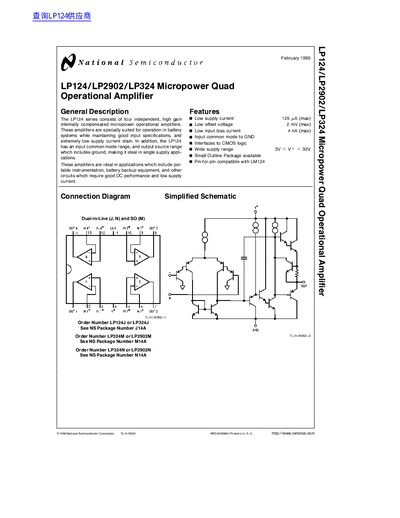

This document is a technical datasheet for the National Semiconductor LP124 series of micropower quad operational amplifiers. The devices consist of four independent, high-gain amplifiers designed for battery-powered systems due to their extremely low supply current drain (max 125 µA) and low input bias current (max 4 nA). They are pin-for-pin compatible with the LM124 and feature an input common mode range that includes ground, making them suitable for single-supply applications.
| Supply Current (Max) | 125 µA |
|---|---|
| Input Offset Voltage (Max) | 2 mV |
| Input Bias Current (Max) | 4 nA |
| Gain Bandwidth Product | 100 KHz |
| Slew Rate | 50 V/mS |
The maximum supply voltage for the LP2902 is 26V or +13V.
The maximum input offset voltage for the LP124 is 7 mV.
