The LP324 series consists of four independent, high gain internally compensated micropower operational amplifiers. These amplifiers are specially suited for operation in battery systems while maintaining good input specifications, and extremely low supply current drain. In addition, the LP324 has an input common mode range, and output source range which includes ground, making it ideal in single supply applications. These amplifiers are ideal in applications which include portable instrumentation, battery backup equipment, and other circuits which require good DC performance and low supply current.

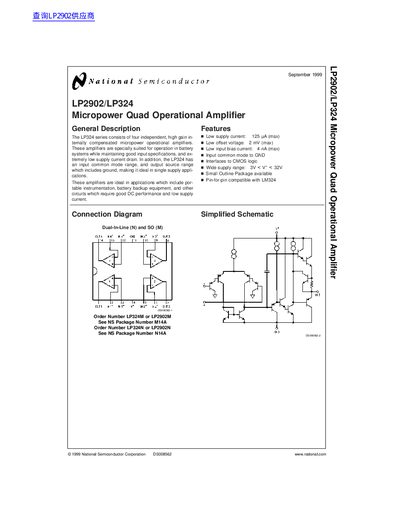

The document describes the LP2902 and LP324 series as four independent, high-gain, internally compensated micropower operational amplifiers. These devices are specifically designed for battery systems while maintaining good input specifications and extremely low supply current drain. They feature an input common mode range that includes ground, making them ideal for single-supply applications.
| Supply Current (Max) | 125 µA |
|---|---|
| Input Offset Voltage (Max) | 2 mV |
| Input Bias Current (Max) | 4 nA |
| Supply Voltage Range | 3V to 32V |
| Operating Temperature Range (LP324) | 0°C to +70°C |
| Operating Temperature Range (LP2902) | -40°C to +85°C |
The maximum supply current is 125 µA.
Yes, they are ideal for single-supply applications because their input common mode range includes ground.
Yes, they are pin-for-pin compatible with the LM324.
