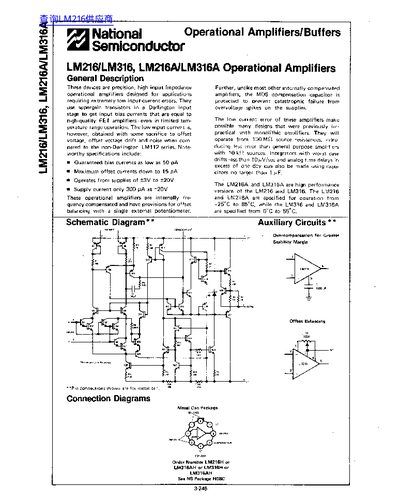

This document describes the LM216, LM316, LM216A, and LM316A operational amplifiers, which are precision devices designed for applications requiring extremely low input current errors. They utilize supergain transistors in a Darlington input stage to achieve input bias currents comparable to high-quality FET amplifiers, even in limited temperature ranges. These devices are internally frequency compensated and include provisions for offset balancing with a single external potentiometer. A key feature is the protection of the MOS compensation capacitor against catastrophic failure from overvoltage spikes on the supplies.
| Input Bias Current (Max) | 50 pA |
|---|---|
| Input Offset Current (Max) | 15 pA |
| Supply Voltage Range | +3V to +20V |
| Operating Temperature (LM316/LM316A) | 0°C to 55°C |
The devices operate from supplies of +3V to +20V.
The amplifiers have provisions for offset balancing with a single external potentiometer.
Yes, the MOS compensation capacitor is protected to prevent catastrophic failure from overvoltage spikes on the supplies.
