The LM3146 is a high voltage field effect transistor produced by National Semiconductor Corporation. It is packaged in a dual in-line package and features high voltage matched pairs of transistors, low noise figure and wide operating current range. It is widely used in various signal processing systems.

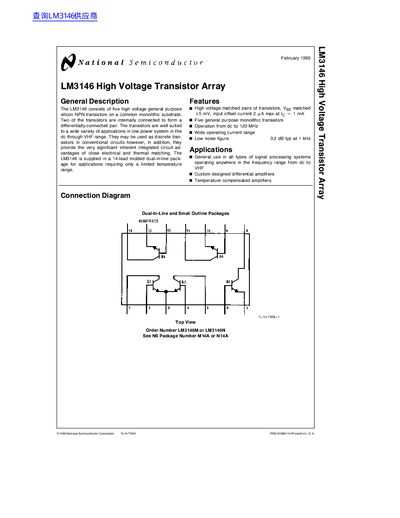

The LM3146 is a high voltage general purpose silicon NPN transistor array containing five transistors on a common monolithic substrate. Two of these transistors are internally connected to form a differentially-connected pair, providing inherent advantages of close electrical and thermal matching. The device is supplied in a 14-lead molded dual-in-line package for applications requiring a limited temperature range.
| Number of Transistors | Five general purpose monolithic transistors |
|---|---|
| Operating Temperature Range | -40 to +85 °C |
| Low Frequency Noise Figure | 3.2 dB typ at 1 kHz |
The operating temperature range is from -40 to +85 °C.
The LM3146 consists of five high voltage general purpose silicon NPN transistors.
