The LM317L is an adjustable 3-terminal positive voltage regulator capable of supplying 100mA over a 1.2V to 37V output range. It is exceptionally easy to use and requires only two external resistors to set the output voltage
The LM317L is an adjustable 3-terminal positive voltage regulator capable of supplying 100mA over a 1.2V to 37V output range. It is designed to be exceptionally easy to use, requiring only two external resistors to set the output voltage. The device offers full overload protection, including current limit, thermal overload, and safe area protection, all of which remain functional even if the adjustment terminal is disconnected.

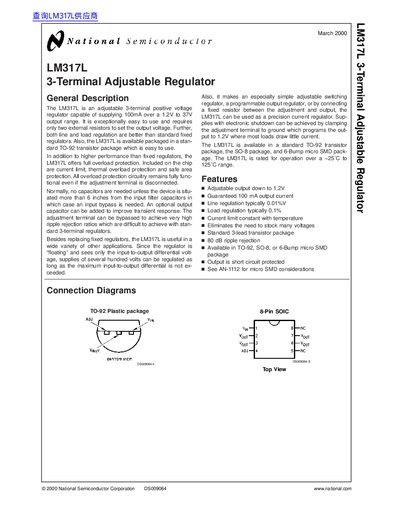

The regulator is available in three standard packages: TO-92, SO-8, and 6-Bump micro SMD. It operates over a temperature range of -25°C to 125°C and features a reference voltage of approximately 1.25V. The datasheet provides detailed electrical characteristics, typical performance characteristics graphs, and connection diagrams for various package types.
| Output Current | 100 mA |
|---|---|
| Output Voltage Range | 1.2V to 37V |
| Operating Junction Temperature Range | -25°C to 125°C |
| Line Regulation | 0.01% (Typ) |
| Load Regulation | 0.1% (Typ) |
| Ripple Rejection Ratio | 80 dB |
| Input-Output Voltage Differential | 40V |
The LM317L is capable of supplying 100mA.
Normally, no capacitors are needed unless the device is situated more than 6 inches from the input filter capacitors.
