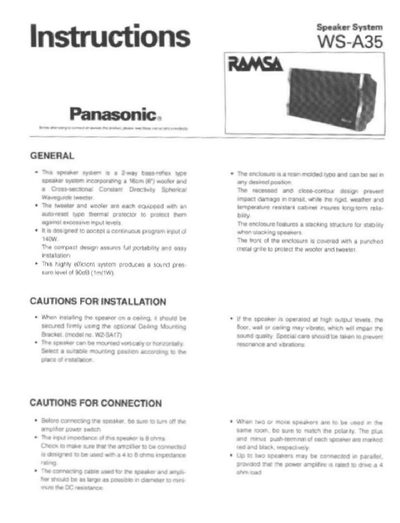

This document provides instructions for installing and connecting the Panasonic WS-A35 speaker. It details mounting options for ceiling or wall installation, including specific precautions for securing the unit to avoid damage. The guide also explains how to connect speaker cables to the push-terminal connectors correctly.
| Power Handling Capacity (Max) | 140W (continuous program input) |
|---|---|
| Power Handling Capacity (RMS) | 70W |
| Sound Pressure Level | 90 dB (AW/1m) |
| Frequency Response | 80 to 20,000 Hz |
| Crossover Frequency | 3,000 Hz |
| Speaker Configuration | Woofer: 16cm (8") cone speaker; Tweeter: Cross-sectional Constant Directivity Spherical Waveguide |
| Dimensions | 385(W) x 230(H) x 220(B) mm |
| Weight | 12.3lbs. (5.6kg) |
Use the optional Ceiling Mounting Bracket (model W2-SA17) to secure it firmly.
The maximum input is 140W (continuous program).
The protection circuit activates, reducing the woofer's sound pressure level and cutting off the tweeter.
