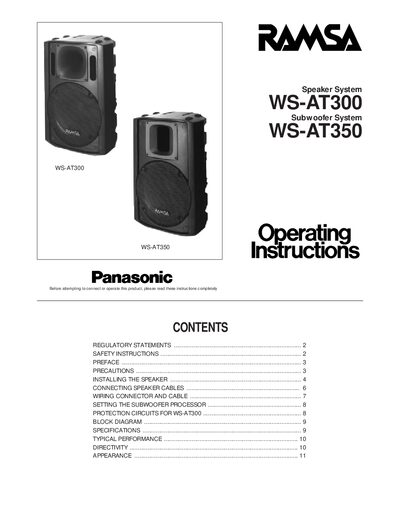

This manual covers safety instructions, handling precautions, and detailed installation procedures for the WS-AT300 speaker system and the WS-AT350 subwoofer. It includes wiring diagrams, connector information, and guidance for mounting the units on walls, ceilings, or stands.
The document also presents the technical specifications of both models, protection circuit operation, typical performance data, and directivity characteristics, helping users achieve optimal sound quality while protecting the equipment.
| Type (WS-AT300) | 2 Way, Bass‑reflex type |
|---|---|
| Type (WS-AT350) | Bass‑reflex type |
| Input impedance (WS-AT300) | 8 Ω |
| Power capacity (WS-AT300) | 400 W (continuous program input) |
| Power capacity (WS-AT350) | 400 W (RMS) |
| Max. Sound Pressure Level (WS-AT300) | 122 dB @ 1 m |
| Max. Sound Pressure Level (WS-AT350) | 118 dB @ 1 m |
| Frequency response (WS-AT300) | 70 Hz – 18 kHz |
| Frequency response (WS-AT350) | 30 Hz – 1.4 kHz |
| Dimensions (WS-AT300) | 480 mm × 694 mm × 38 mm |
| Weight (WS-AT300) | 26 kg (57 lb) |
| Weight (WS-AT350) | 26.5 kg (58 lb) |
The WS-AT300 can reach a maximum sound pressure level of 122 dB at 1 m.
Do not connect more than two speakers in parallel, as lower impedance can cause distortion or damage.
Use safety wires (not supplied) to secure the speaker when hanging it from a wall or ceiling.
The WS-AT350 accepts an input of 400 W (RMS).
