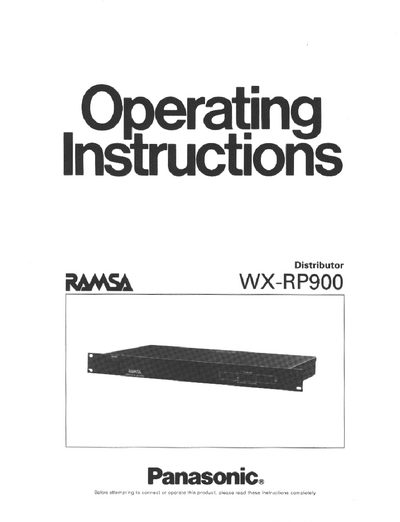

This document provides operating instructions for the RAMSA WX-RP900, a professional audio distributor designed to be used with Diversity Receivers WX-RP810, WX-RP820, and Wireless Antenna WX-RP921. The system supports up to six wireless microphones using only one pair of receiving antennas by mixing inputs from two antenna channels into three output channels.
| Power Supply | 120V AC 60Hz |
|---|---|
| Power Consumption | Approx. 12W |
| Mix Distribution In/Out | 2 input for each Channel, 3 output for each Channel |
| Maximum Input | 90dBuV (Spurious Ratio : More than 40dB) |
| Antenna Input Connector | 2 input for each Channel, BNC 75 ohms |
| Phantom Power Supply | 12V DC, 60mA |
| Antenna Output Connector | 3 output for each Channel, BNC 75 ohms |
| Ambient Operating Temperature | -10°C - +50°C |
| Dimensions (Excluding Rubber foot) | 480 (W) X 44 (H) x 250 (L) mm |
| Weight | 7.70 Ibs (3.4 Kg) |
Up to 6 wireless microphones may be used at once with the distributor, using only 1 pair of receiving antennas.
Place two receiving antennas between 16.7ft(5m) and 66ft(20m) apart from each other.
When using multiple wireless microphones, the transmitters should be at least 1.6 ft (60 cm) apart from each other.
