About this manual

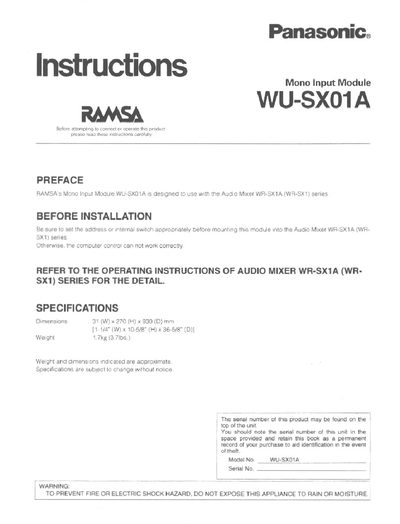

This document provides installation instructions for the RAMSA Mono Input Module, model WU-SX01A. It is specifically designed for use with the Audio Mixer WR-SX1A (WR-SX1A) series. Users must read these instructions carefully before attempting to connect or operate the device.

What's inside

Preface
Before Installation
Specifications
To Users of the WR-SX1 Series
LEVEL MATCH LED colors

Specifications

Dimensions	37 (W) x 270 (H) x 9390 (D) mm
Weight	1.7kg (3.7Ibs.)

Frequently asked questions

Which Audio Mixer series is this module designed for?

The RAMSA Mono Input Module WU-SX01A is designed to use with the Audio Mixer WR-SX1A (WR-SX1A) series.

What happens if the LEVEL MATCH LED lights red?

The LEVEL MATCH LED lights red when the fader position exceeds the memory value.
