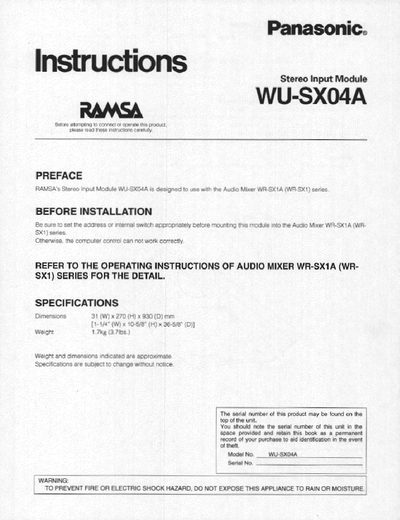

Panasonic WU-SX04A Stereo Input Module Instructions

Brand: Panasonic
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 573 KB
Published: 03 July, 2012
Updated: 03 July, 2012
MD5 checksum: CEC8AB2E7BE5C197924E297045CB77D4
PDF: Panasonic WU-SX04A Stereo Input Module Instructions PDF

About this manual

This document provides installation and operating instructions for the Panasonic WU-SX04A Stereo Input Module. It is designed for use with the Audio Mixer WR-SX1A (WR-SX1) series. Users must set the address or internal switch appropriately before mounting the module to ensure correct computer control operation.

What's inside

Preface
Before Installation
Specifications
Installation Instructions
Level Match LED
Modification

Specifications

Dimensions	31 (W) x 270 (H) x 930 (D) mm
Weight	1.7kg

Frequently asked questions

What series is the WU-SX04A module designed for?

The module is designed to use with the Audio Mixer WR-SX1A (WR-SX1) series.

What must be done before mounting the module?

You must set the address or internal switch appropriately before mounting.
