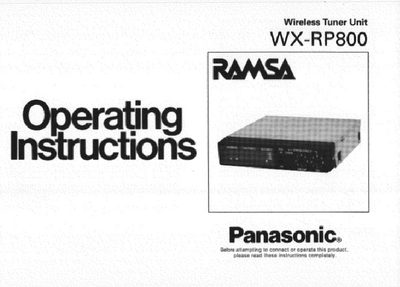

This manual provides instructions for installing the Panasonic WX-RP800 Wireless Tuner Unit into a compatible Diversity Receiver, specifically the WX-RP810 or WX-RP820 models. It details the steps for mounting the unit, connecting internal connectors, and securing the covers.
| Power Source | 12V DC, 220mA(Max.) |
|---|---|
| Oscillator | Crystal-controlted PLL Synthesizer |
| Receiving System | Super Heterodyne |
| Receiving Sensitivity | More than S/N 30dB |
| Squeich Sensitivity | Less than 18 dBuv |
| Signal to Noise Ratio | More than 60 dB |
| Dimensions | 140(W) x 33(H) x 136(L) mm |
| Weight | 0.99lbs (450g) |
The WX-RP800 is designed to be used with the Diversity Receivers WX-RP810 and WX-RP820.
Refer to the Operating instructions of Diversity Receiver WX-RP810 or WX-RP820 for major operating controls and functions.
