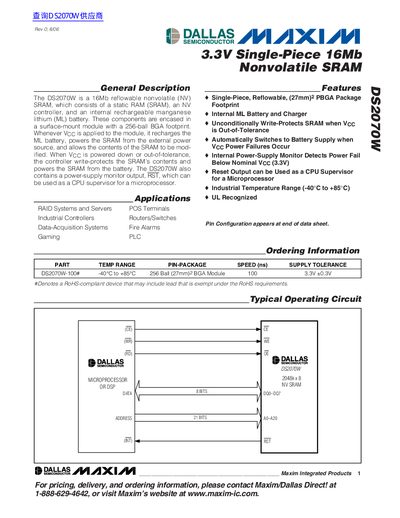

DS2070W 3.3V single-piece 16Mb nonvolatile SRAM
The DS2070W is a 16Mb reflowable nonvolatile (NV) SRAM module consisting of a static RAM, an NV controller, and an internal rechargeable manganese lithium (ML) battery. Encased in a 256-ball BGA footprint, the device automatically recharges the battery and powers the SRAM when external power is applied. When Vcc is powered down or out-of-tolerance, the controller write-protects the SRAM and powers it from the internal battery.
| Capacity | 16Mb |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Package | 256 Ball (27mm)2 BGA Module |
| Read Cycle Time | 100 ns |
| Access Time | 100 ns |
Yes, it contains an internal rechargeable manganese lithium (ML) battery and charger.
Yes, the Reset Output can be used as a CPU supervisor for a microprocessor.
