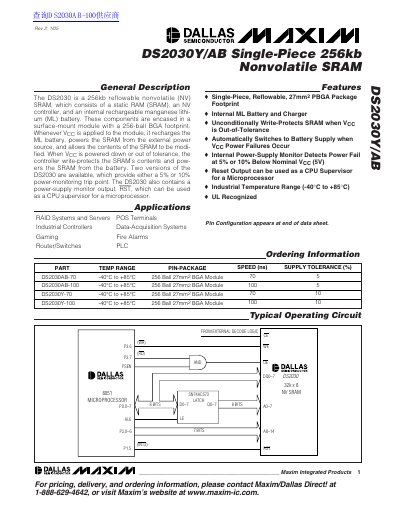

The DS2030 is a 256kb reflowable nonvolatile (NV) SRAM, which consists of a static RAM (SRAM), an NV controller, and an internal rechargeable manganese lithium (ML) battery. These components are encased in a surface-mount module with a 256-ball BGA footprint. Whenever VCC is applied to the module, it recharges the ML battery, powers the SRAM from the external power source, and allows the contents of the SRAM to be modified. When VCC is powered down or out of tolerance, the controller write-protects the SRAM's contents and powers the SRAM from the battery. Two versions of the DS2030 are available, which provide either a 5% or 10% power-monitoring trip point. The DS2030 also contains a power-supply monitor output, RST, which can be used as a CPU supervisor for a microprocessor.
The DS2030Y/AB is a 256kb reflowable nonvolatile (NV) SRAM manufactured by Maxim Integrated Products. It consists of a static RAM (SRAM), an NV controller, and an internal rechargeable manganese lithiumum (ML) battery encased in a surface-mount module with a 256-ball BGA footprint. When external power is applied, the module recharges the battery and allows data modification; when power is lost or out of tolerance, the controller write-protects the SRAM and switches to battery power.
| Memory Capacity | 256kb |
|---|---|
| Package Type | 256 Ball 27mm 2 BGA Module |
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage (DS2030AB) | 4.75V to 5.25V |
| Supply Voltage (DS2030Y) | 4.50V to 5.50V |
| Power-Monitoring Trip Point | 5% or 10% |
The DS2030 is encased in a surface-mount module with a 256-ball BGA footprint.
When V CC is powered down or out of tolerance, the controller write-protects the SRAM's contents and powers the SRAM from the internal battery.
Yes, it contains a power-supply monitor output, RST, which can be used as a CPU supervisor for a microprocessor.
