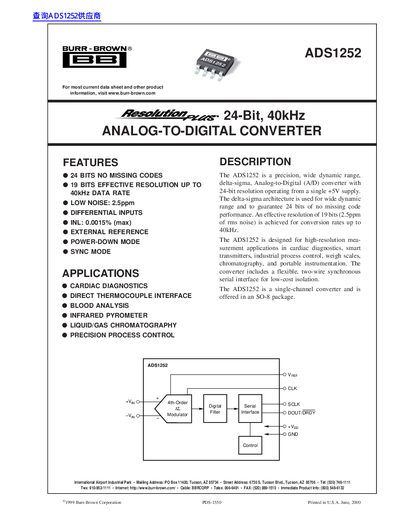

ADS1252 is a 24-bit precision, wide dynamic range, delta-sigma, analog-to-digital converter. 24 bits of no missing code performance. An effective resolution of 19 bits (2.5ppm of rms noise) is achieved for conversion rates up to 40kHz. Designed for high-resolution measurement applications in cardiac diagnostics, smart transmitters, industrial process control, weigh scales, chromatography, and portable instrumentation.
The ADS1252 is a single-channel, wide dynamic range Analog-to-Digital (A/D) converter utilizing delta-sigma architecture. It operates from a single +5V supply and offers 24-bit resolution with no missing codes and an effective resolution of up to 19 bits.
| Resolution | 24 Bits |
|---|---|
| Effective Resolution | 19 bits |
| Data Rate | 40kHz |
| Input Voltage Range | 0 to Vpp |
| Integral Linearity Error (INL) | +0.0015% of FSR |
| Operating Temperature Range | -40 to +85 °C |
The device supports a data rate of up to 40 kHz.
The device operates from -40°C to +85°C.
The maximum power dissipation is 50 mW.
