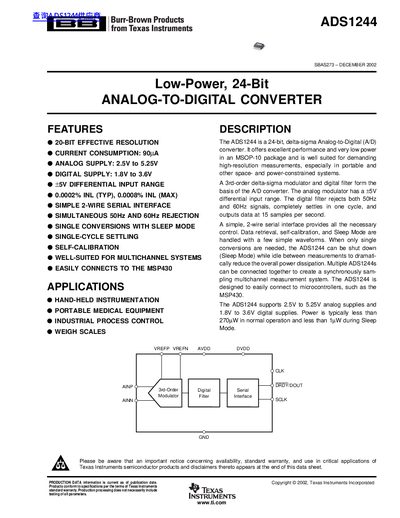

The ADS1244 is a 24-bit, delta-sigma Analog-to-Digital (A/D) converter. It offers excellent performance and very low power in an MSOP-10 package and is well suited for demanding high-resolution measurements, especially in portable and other space- and power-constrained systems.
The ADS1244 is a 24-bit, delta-sigma analog-to-digital converter designed for high-resolution measurements in portable and space-constrained systems. It utilizes a 3rd-order delta-sigma modulator and digital filter to achieve excellent performance with very low power consumption in an MSOP-10 package.
The device features a simple 2-wire serial interface for control, including data retrieval, self-calibration, and sleep mode. It supports analog supplies from 2.5V to 5.25V and digital supplies from 1.8V to 3.6V, with typical power consumption of less than 270uW. The converter is well-suited for applications such as hand-held instrumentation, portable medical equipment, and industrial process control.
| Resolution | 24 Bits |
|---|---|
| Data Rate | 15 sps |
| Integral Nonlinearity (INL) | 0.0002% (Typ), 0.0008% (Max) |
| Analog Supply Voltage | 2.5V to 5.25V |
| Digital Supply Voltage | 1.8V to 3.6V |
| Total Power Dissipation | 270 uW |
| Package Type | MSOP-10 |
The ADS1244 offers 20-bit effective resolution.
Yes, the digital filter rejects both 50Hz and 60Hz signals.
The typical current consumption is 90uA.
