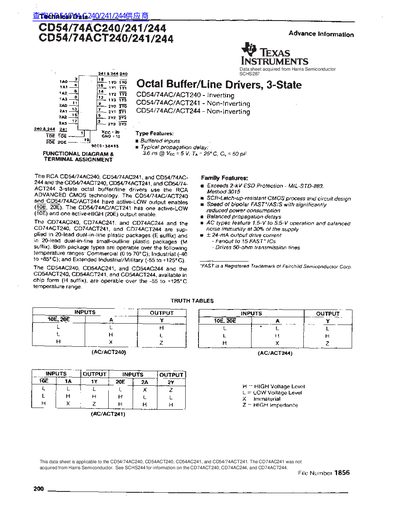

TEXAS INSTRUMENTS CD54/74AC240/241/244 CD54/74ACT240/241/244 handbook

CD54/74AC240/241/244 datasheet

Brand: Texas Instruments
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 7
File format: PDF
File size: 218 KB
Published: 02 July, 2012
Updated: 30 September, 2023
Model: CD54
MD5 checksum: CA5A571A0731AE5E8BC8C8530C597D64
PDF: TEXAS INSTRUMENTS CD54/74AC240/241/244 CD54/74ACT240/241/244 handbook PDF

About this manual

This document is a technical data sheet for the CD54/74AC240, CD54/74AC241, CD54/74AC244 and their ACT variants. These devices are 3-state octal buffer/line drivers utilizing RCA Advanced CMOS technology.

What's inside

Type Features
Terminal Assignment
Truth Tables
Maximum Ratings
Recommended Operating Conditions
Static Electrical Characteristics: AC Series
Static Electrical Characteristics: ACT Series
Switching Characteristics: AC Series
Switching Characteristics: ACT Series

Specifications

Technology	RCA Advanced CMOS technology
Supply Voltage Range (AC Types)	1.5 to 5.5 V
Supply Voltage Range (ACT Types)	4.5 to 5.5 V
Output Drive Current	+24 mA
Operating Temperature Range (Military)	-55 to +125°C
ESD Protection	Exceeds 2-kV

Frequently asked questions

What is the difference between AC and ACT series?

The AC types feature a supply voltage range of 1.5 V to 5.5 V, while the ACT types operate from 4.5 V to 5.5 V.

What is the maximum output drive current?

The devices provide a +24 mA output drive current.
