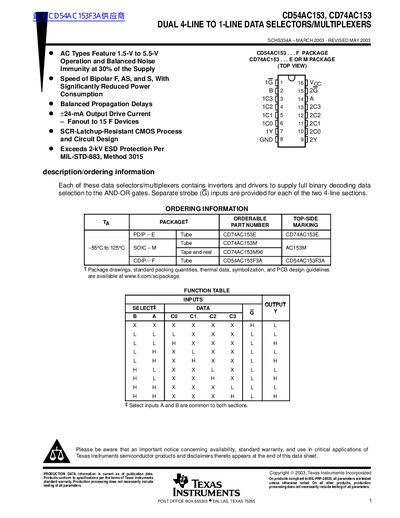

This datasheet provides details on the features and characteristics of the CD54AC153 and CD74AC153 dual 4-line to 1-line data selectors/multiplexers.
The CD54AC153 and CD74AC153 are dual 4-line to 1-line data selectors/multiplexers designed for operation over a wide supply voltage range of 1.5 V to 5.5 V. These devices feature balanced noise immunity and propagation delays, along with a ±24-mA output drive current capable of driving up to 15 F devices. They utilize an SCR-latchup-resistant CMOS process and offer ESD protection exceeding 2-kV per MIL-STD-883, Method 3015.
| Supply Voltage Range | 1.5 V to 5.5 V |
|---|---|
| Output Drive Current | ±24-mA |
| Fanout Capability | 15 F Devices |
| ESD Protection | 2-kV |
| Operating Temperature Range | -55°C to 125°C |
| Package Types | CDIP, PDIP, SOIC |
The devices support a supply voltage range from 1.5 V to 5.5 V.
The output drive current is ±24-mA.
The output can drive up to 15 F devices.
