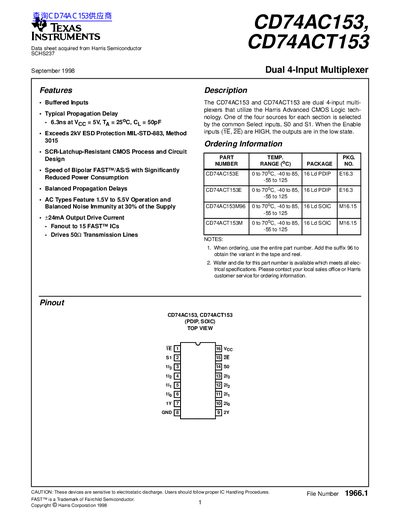

This document describes the features and characteristics of Harris Semiconductor's CD74AC153 and CD74ACT153 dual 4-input multiplexers, including buffered inputs, propagation delay, ESD protection, CMOS process and circuit design, power consumption, balanced propagation delays, noise immunity, and output drive current.
The CD74AC153 and CD74ACT153 are dual 4-input multiplexers that utilize Harris Advanced CMOS Logic technology. Each section selects one of four sources based on common Select inputs, S0 and S1. When the Enable inputs are HIGH, the outputs are forced to a low state.
| Typical Propagation Delay | 6.3ns |
|---|---|
| ESD Protection | 2kV |
| Supply Voltage Range (AC Types) | 1.5V to 5.5V |
| Output Drive Current | ±24mA |
| Operating Temperature Range | -55°C to 125°C |
| Maximum Junction Temperature | 150°C |
The typical propagation delay is 6.3ns at V CC = 5V.
When the Enable inputs are HIGH, the outputs are in the low state.
The device exceeds 2kV ESD Protection according to MIL-STD-883.
