Agilent 7500s Measuring Elemental Ratios in Corals by LA-ICP-MS Application Note

A rapid analytical technique of laser ablation inductively coupled plasma mass spectrometry was developed to measure trace element constituents in corals and hard sponges. This technique is illustrated by measuring B, Mg, Ca, Mn, Zn, Sr, Ba and U in a Porites coral collected from the Great Barrier Reef, Australia. The accuracy of laser ablation inductively coupled plasma mass spec- trometry for the measurement of Sr/Ca and Ba/Ca in corals by comparison with solution isotope dilution induc- tively coupled plasma mass spectrometry is discussed. We demonstrate the significance of the Sr/Ca ratio by correlation with in situ sea surface temperature data to show that Sr/Ca in corals provides a means to retrospec- tively measure sea surface temperature prior to available instrumental records. Coral Ba/Ca ratios as an indicator of riverine sediment input during times of runoff into the Great Barrier Reef are also examined.

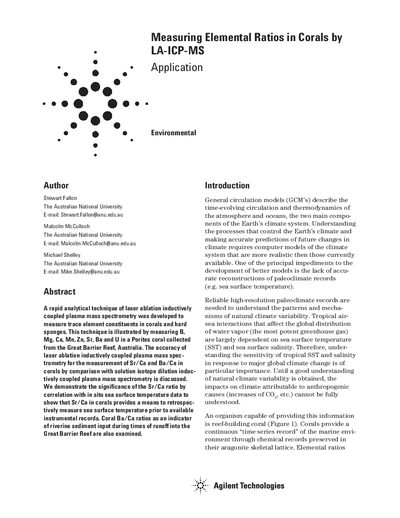

Agilent 7500s Measuring Elemental Ratios in Corals by LA-ICP-MS Application Note - cover page
Brand
Agilent
Document type
Application Note
Language
English
Pages
6
File format
PDF
File size
1.6 MB
Published
02 July, 2012
Updated
30 September, 2023
Model
7500s
MD5 checksum
F24B6E4705548F86FA641C40D8686819

About this manual

The document details a rapid analytical technique developed by researchers at The Australian National University to measure trace element constituents in corals and hard sponges. It focuses on the use of Laser Ablation Inductively Coupled Plasma Mass Spectrometry (LA-ICP-MS) as an alternative to traditional, time-consuming methods like solution isotope dilution ICP-MS.

What's inside

  • Introduction
  • Experimental
  • Coral Collection
  • ICP-MS System Parameters
  • Results and Discussion
  • Accuracy Comparison
  • Sea Surface Temperature Proxy

Specifications

Laser Wavelength193 nm
Laser Pulse Length25 nsec
Power Density on Sample0.32 GW/cm²
Laser Pulse Frequency5 Hz
Sampling Slit Size50 x 500 um

Frequently asked questions

What elements were measured in the Porites coral study?

The study measured B, Mg, Ca, Mn, Zn, Sr, Ba and U.

What is the time resolution typically obtained for coral analysis?

Sub-weekly resolution is usually obtained, yielding over 100 samples per year.
