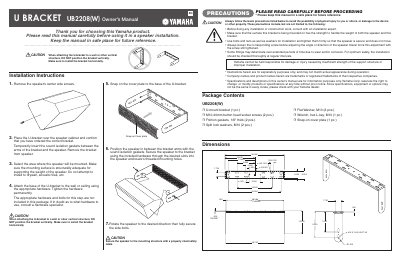

Yamaha UB2208(W) U-Mount Bracket Installation Instructions

About this manual

This document provides installation instructions for the Yamaha UB2208(W) U-mount bracket. It details the steps for removing speaker screws, positioning the bracket, and securing the speaker to the wall or ceiling structure. The guide emphasizes the importance of using appropriate hardware and ensuring the mounting surface can support the weight of the speaker and bracket.

What's inside

• Installation Instructions
• Safety Precautions
• Package Contents
• Mounting Hardware
• Speaker Securing

Frequently asked questions

What orientation must the U-bracket have when attached to a wall?

You must install the bracket horizontally and never position it vertically.

Is the hardware needed to attach the base of the U-bracket included in the package?

No, the appropriate hardware and bolts for attaching the base are not included.

What thickness of friction gaskets comes with the UB2208(W) bracket?

The package includes two friction gaskets that are 1/8" thick.
