This is a manual for installing a speaker. It explains how to install the speaker.

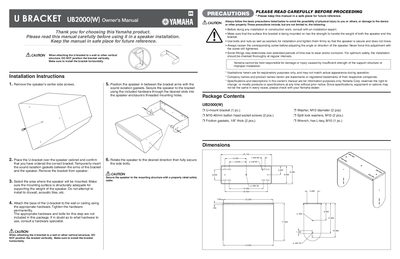

This guide provides step-by-step instructions for installing the Yamaha UB2000(W) U-mount bracket. It details the removal of speaker screws, positioning of sound isolation gaskets, and securing the bracket to a structurally adequate surface using appropriate hardware not included in the package.
The document includes critical safety precautions, such as ensuring the bracket is installed horizontally and never vertically, and the requirement to use a properly rated safety cable to secure the speaker. It also lists the package contents and provides dimensional specifications for the bracket.
| Bracket Type | U-mount bracket |
|---|---|
| Included Screws | M10-40mm button head socket screws |
| Included Gaskets | Friction gaskets, 1/8" thick |
| Included Washers | Washer, M10 diameter |
| Included Wrench | hex L-key, M10 |
No, the appropriate hardware and bolts for attaching the base of the U-bracket to the wall or ceiling are not included in this package.
No, you must not position the bracket vertically; it must be installed horizontally.
The mounting surface must be structurally adequate for supporting the weight of the speaker and should not be drywall or acoustic tiles.
