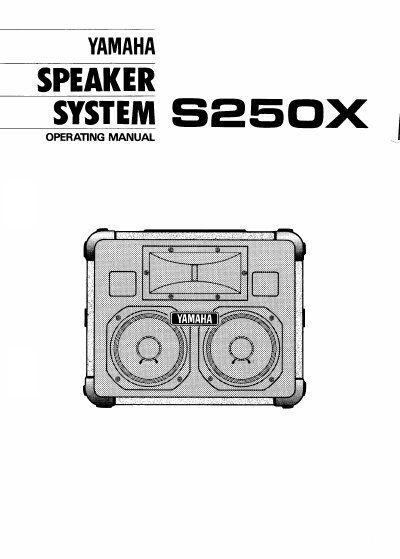

The Yamaha S250X is a 2-way, bass reflex speaker system designed for sound reinforcement applications. It features a newly developed compression driver and horn tweeter, along with two carbon-fiber cone woofers. The enclosure is constructed from Douglas fir and high-density particle board, offering durability and water resistance suitable for on-the-road and outdoor use. The system is lightweight and compact, allowing for easy portability and various mounting options including stand mounting, wall mounting, and ceiling hanging.
| System Type | 2-way, bass reflex speaker system |
|---|---|
| Woofer | 20 cm (8") carbon-fiber Cone Woofer JA2113 x 2 |
| Tweeter | Compression driver+ horn JA3202 8" |
| Enclosure Type | 34.7 Bass Reflex Type |
| System Impedance | 8 ohms nominal |
| Rated Input | Program 250 W, Max. 500 W |
| Frequency Response | 65 Hz to 17 kHz |
| Sound Pressure Level | 97 dB 1 W, 1 m |
| Crossover Frequency | 2.5 kHz |
| Inputs | 1/4" phone jack x2 |
| Dimensions | 556x 446x 257 mm (21.78"x 17.56"x 10.12") |
| Weight | 19.2 kg (42.3 lbs) |
Yes, the S250X enclosure is water-resistant, making it suitable for heavy on-the-road and outdoor use.
For long runs over 25 ft (7.6 m), 16-gauge or larger diameter wire should be used.
You can stack no more than two S250X speakers together in a column.
