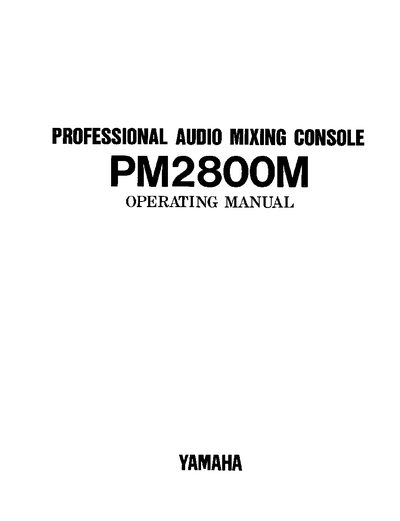

This document serves as the operating manual for the Yamaha PM2800M Professional Audio Mixing Console. It is designed to assist engineers and technicians familiar with sound system design by providing a review of basic features in the "Brief Operating Instructions" section, while also offering background information for better utilization of the console and auxiliary equipment.
The manual details the console's architecture, including eight primary mixing busses, four auxiliary mixing busses, a stereo mixing bus, ten matrix mixing busses, and five cue busses. It covers terminology conventions used throughout the text, explains internal jumper configurations that can alter signal paths, and provides comprehensive instructions on installation, grounding techniques, cable types, gain structure, and optional functions such as input transformers.
| Product Type | Professional Audio Mixing Console |
|---|---|
| Model Number | PM2800M |
It is primarily for engineers or technicians who are familiar with sound system design, though it also provides background information for better utilization.
It indicates special procedures or guidelines that must be observed to avoid injury to the operator or others using or exposed to the console.
