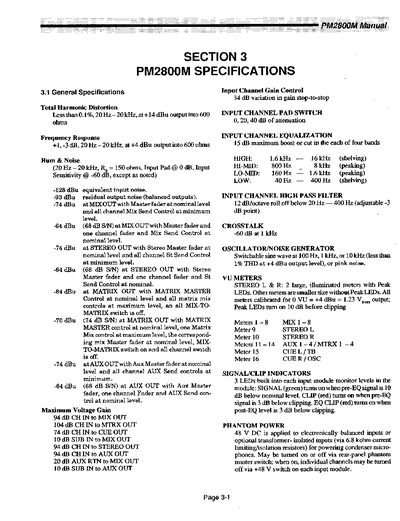

This document provides detailed technical specifications for the Yamaha PM2800M mixing console. It covers general performance metrics such as total harmonic distortion, frequency response, and signal-to-noise ratios across various outputs like MIX OUT, STEREO OUT, and MATRIX OUT.
The datasheet also details input and output characteristics, including impedance levels, nominal sensitivities, and maximum voltage gains for channels, aux returns, sub inputs, and cue lines. Additionally, it lists optional accessories like input transformers and output transformer sets, along with physical dimensions and power supply requirements.
| Total Harmonic Distortion | Less than 0.1%, 20 Hz — 20 kHz, at +14 dBu output into 600 ohms |
|---|---|
| Frequency Response | +1, -3 dB, 20 Hz — 20 kHz, at +4 dBu output into 600 ohms |
| Equivalent Input Noise | -128 dBu |
| Residual Output Noise (balanced) | -93 dBu |
| Maximum Voltage Gain (CH IN to MIX OUT) | 94 dB |
| Input Channel Pad Switch Attenuation | 0, 20, 40 dB |
| Console Height (both models) | 12-33/64 inches (318 mm) |
| Console Depth | 37-23/32 inches (958 mm) |
USA/Canada models require 105 to 130 V, 50/60 Hz.
-26 dBu (38.8 mV).
94 dB.
