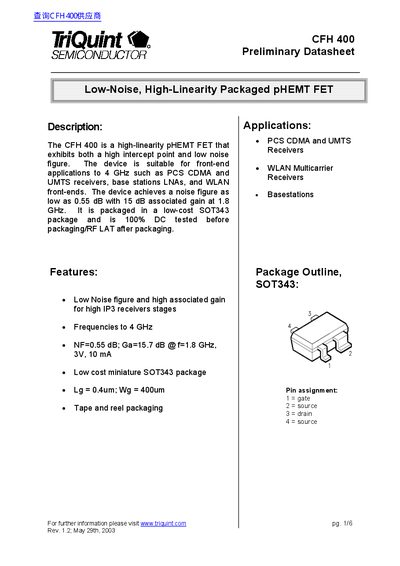

The CFH 400 is a high-linearity pHEMT FET that exhibits both a high intercept point and low noise figure. The device is suitable for front-end applications to 4 GHz such as PCS CDMA and UMTS receivers, base stations LNAs, and WLAN front-ends. The device achieves a noise figure as low as 0.55 dB with 15 dB associated gain at 1.8 GHz. It is packaged in a low-cost SOT343 package and is 100% DC tested before packaging/RF LAT after packaging.
The CFH400 is a high-linearity pHEMT FET designed for front-end applications such as PCS CDMA and UMTS receivers, base station LNAs, and WLAN front-ends. The device achieves a noise figure as low as 0.55 dB with 15 dB associated gain at 1.8 GHz.
The component is available in a low-cost SOT343 package and features tape and reel packaging. It has been 100% DC tested before packaging and RF LAT after packaging to ensure reliability.
| Noise Figure (NF) | 0.55 dB @ 1.8 GHz, 3V, 10 mA |
|---|---|
| Associated Gain (Ga) | 15.7 dB @ 1.8 GHz, 3V, 10 mA |
| Frequency Range | Up to 4 GHz |
| Package Type | SOT343 |
| Drain-source voltage (Vos) | 5.5 V |
| Channel temperature (Toh) | 150 °C |
The device is suitable for front-end applications to 4 GHz such as PCS CDMA and UMTS receivers, base stations LNAs, and WLAN front-ends.
Pin 1 is gate, Pin 2 is source, Pin 3 is drain, and Pin 4 is source.
