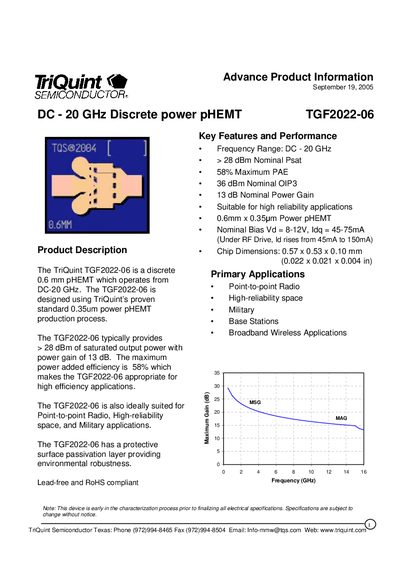

The TGF2022-06 is a TriQuint 0.6mm pHEMT operating from DC-20GHz. This device provides >28 dBm of saturated output power and 13 dB of power gain. The TGF2022-06 is well suited for high efficiency applications such as point-to-point radio, high reliability space, and military applications.
The TGF2022-06 is a discrete 0.6 mm pHEMT operating from DC to 20 GHz. It delivers up to 28 dBm saturated output power with 58 % maximum power‑added efficiency and is suited for high‑reliability, point‑to‑point radio, space and military applications. The device includes a protective surface passivation layer and complies with RoHS.
The document provides maximum electrical ratings, DC and RF characterization tables, thermal information, linear model parameters, S‑parameter data, mechanical drawing dimensions and detailed assembly process notes for reflow, placement and interconnect techniques.
| Frequency Range | DC – 20 GHz |
|---|---|
| Maximum Saturated Output Power | 28 dBm |
| Power Added Efficiency (PAE) | 58 % |
| Power Gain | 13 dB |
| Chip Dimensions | 0.57 × 0.53 × 0.10 mm |
| Maximum Positive Supply Voltage | 12.5 V |
| Saturated Drain Current (Idss) | 180 mA |
| Transconductance (Gm) | 225 mS |
| Breakdown Voltage (Vds) | 30 V |
The device operates from DC up to 20 GHz.
It can deliver up to 28 dBm of saturated output power.
Devices must be stored in a dry nitrogen atmosphere.
Use AuSn (80/20) solder with limited exposure to temperatures at or above 300 °C for 30 seconds.
