This document is an instruction for using speakers, including installation location, precautions, and prohibited items.

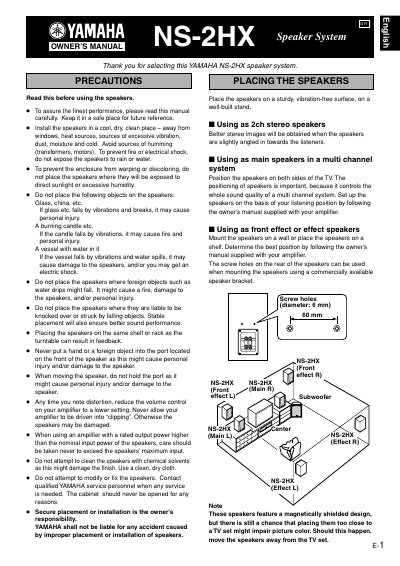

This Owner's Manual covers the Yamaha NS-2HX speaker system, including precautions for placement, connection methods for standard and bi-wired setups, and removal of the front cover. It details how to position the speakers for stereo or multi-channel use and warns against placing objects on the enclosure to prevent injury or damage.
| System Type | 2-way 2-speaker bass reflex speaker system |
|---|---|
| Woofer | 13 cm (5") cone woofer |
| Tweeter | 3 cm (1") dome tweeter |
| Frequency Response | 60 Hz to 50 kHz |
| Nominal Input Power | 60 W |
| Maximum Input Power | 200 W |
| Sensitivity | 90 dB/2.83 Vim |
| Crossover Frequency | 2.5 kHz |
| Dimensions (WxHxD) | 186 x 318 x 189 mm |
| Weight | 6.0 kg (13 Ibs. 8 oz.) |
The maximum input power is 200 W. Exceeding this value should be avoided to prevent damage.
For better stereo images, the speakers should be slightly angled in towards the listeners.
