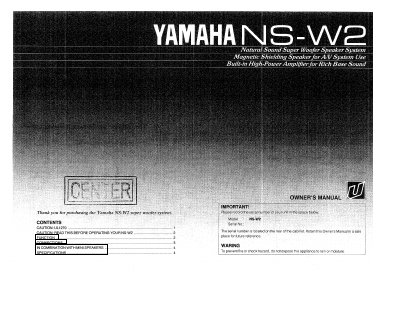

The document serves as an owner's guide for the Yamaha NS-W2, a sophisticated super woofer system designed to improve low-range sound. It includes essential safety cautions regarding water, ventilation, and power sources, along with instructions on how to operate the volume control and power switch effectively.
Detailed sections cover proper installation locations to avoid heat or vibration interference, correct wiring connections for single or dual unit setups, and compatibility with small speaker systems like the NS-L1. The manual concludes with technical specifications regarding dimensions, weight, and electrical requirements.
| Product Type | Electronic Super Woofer |
|---|---|
| Filter Frequency | 100 Hz 18 dB/oct (fixed) |
| Power Supply | AC120 V, 60 Hz |
| Dimensions (W x H x D) | 450 x 860 x 315 mm |
| Weight | $2 kg (26 Ibs. 7 07) |
Avoid placing it in direct sunlight, close to heat sources, or locations subject to vibration and excessive dust.
Yes, using the NS-W2 together with small speaker systems like the NS-L1 improves the frequency response.
When removing the plug, always pull directly on the plug; never yank the cord.
